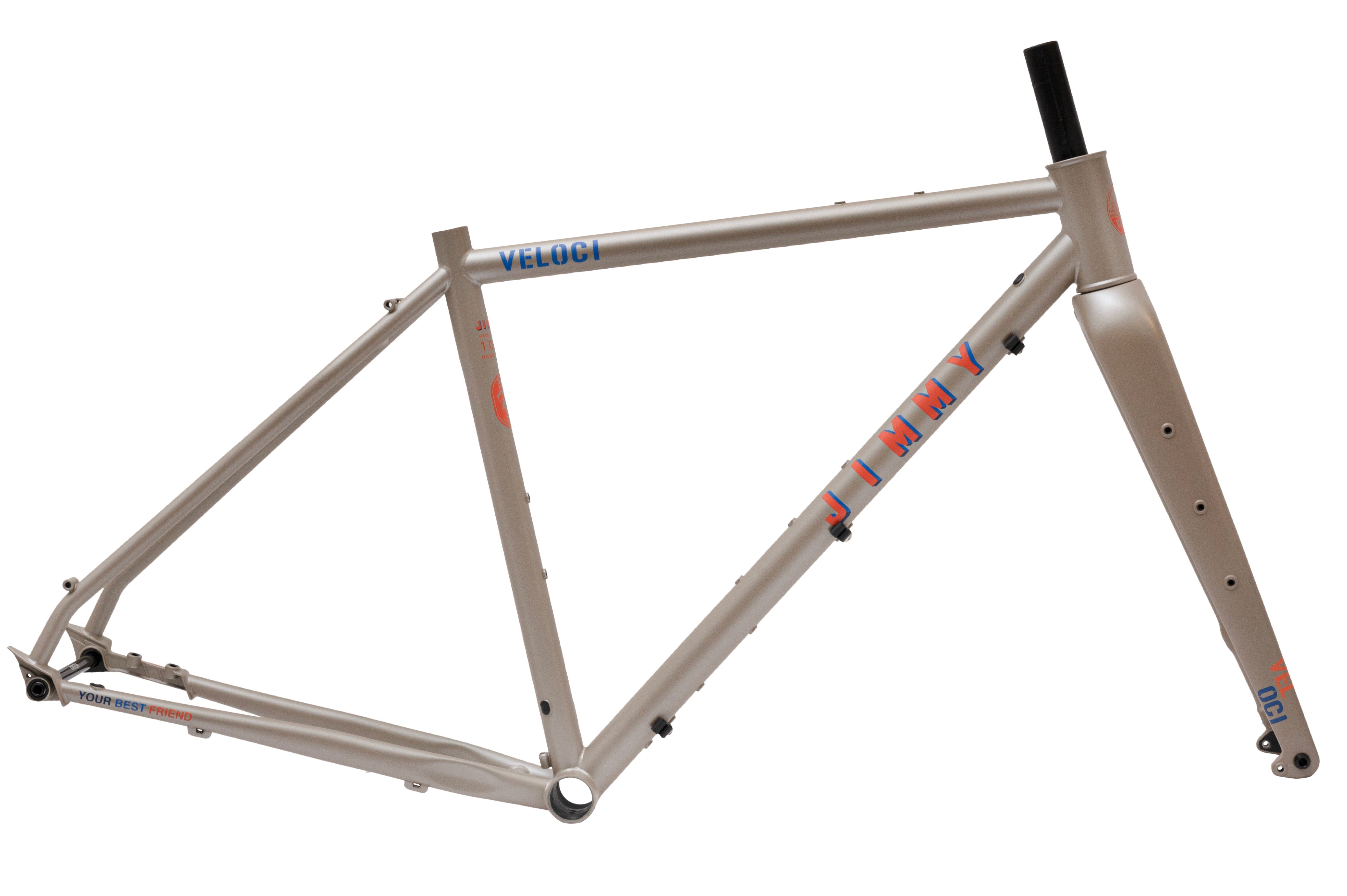

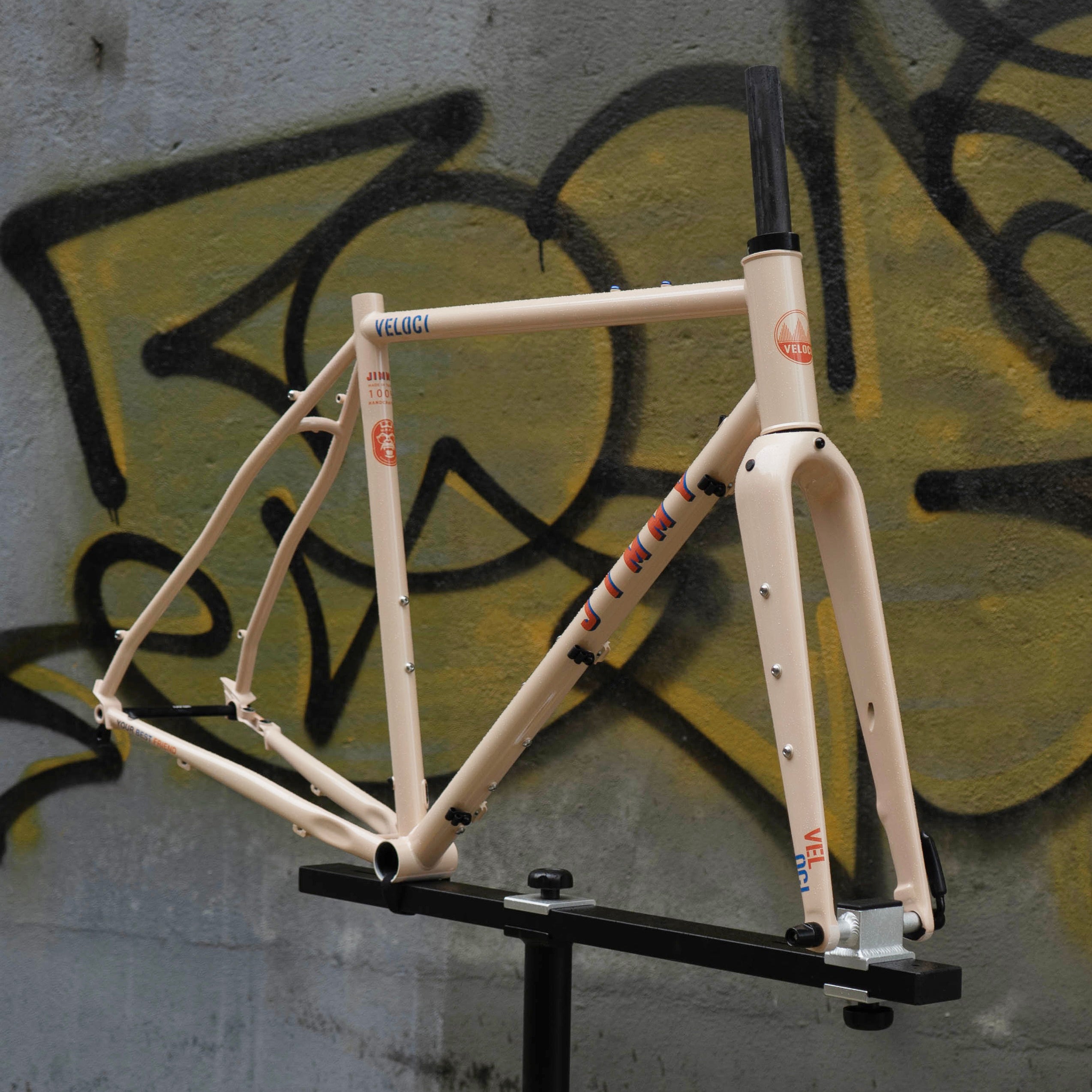

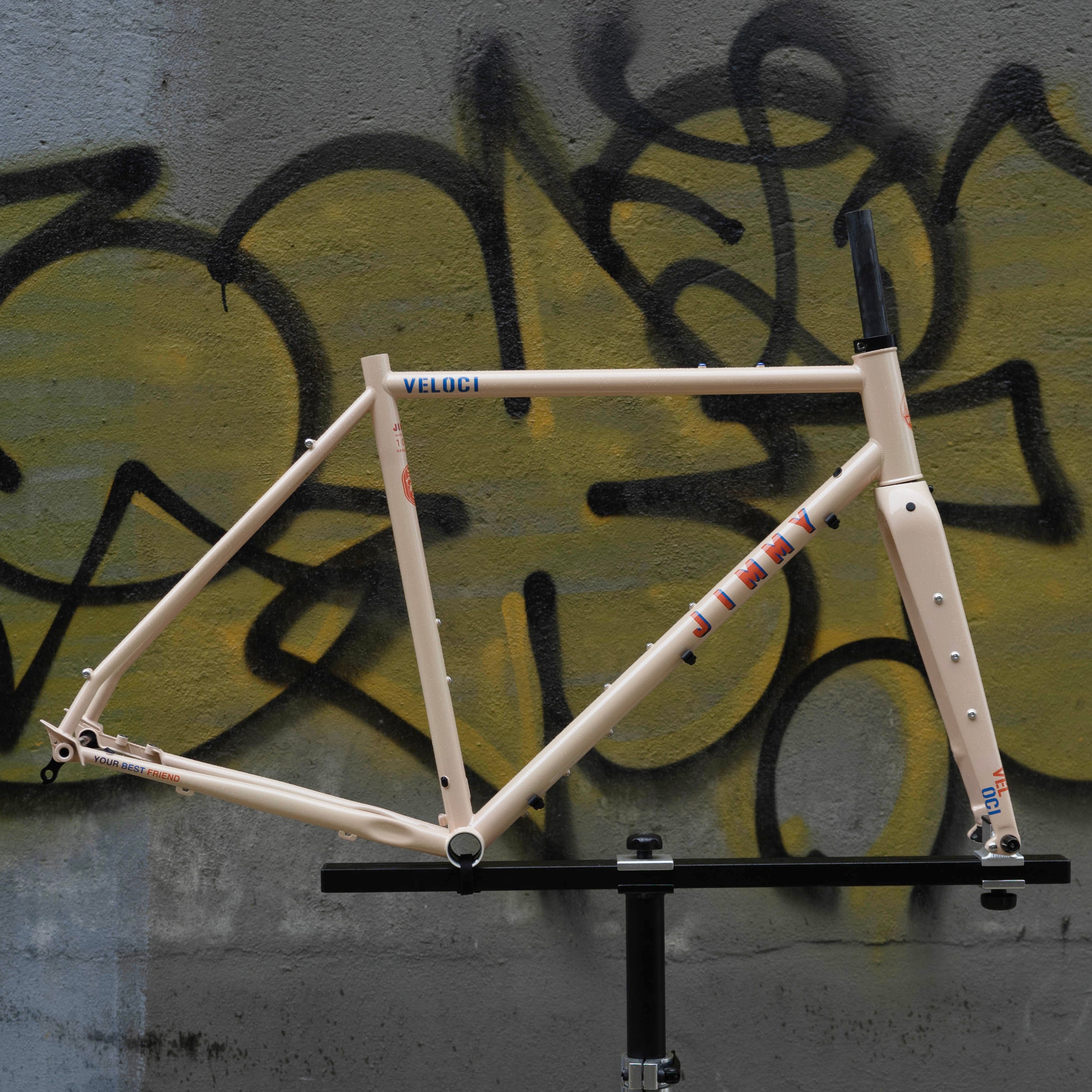

JIMMY V.2 FRAME SET

Jimmy V.2: Smarter, sleeker, and ready for every adventure.

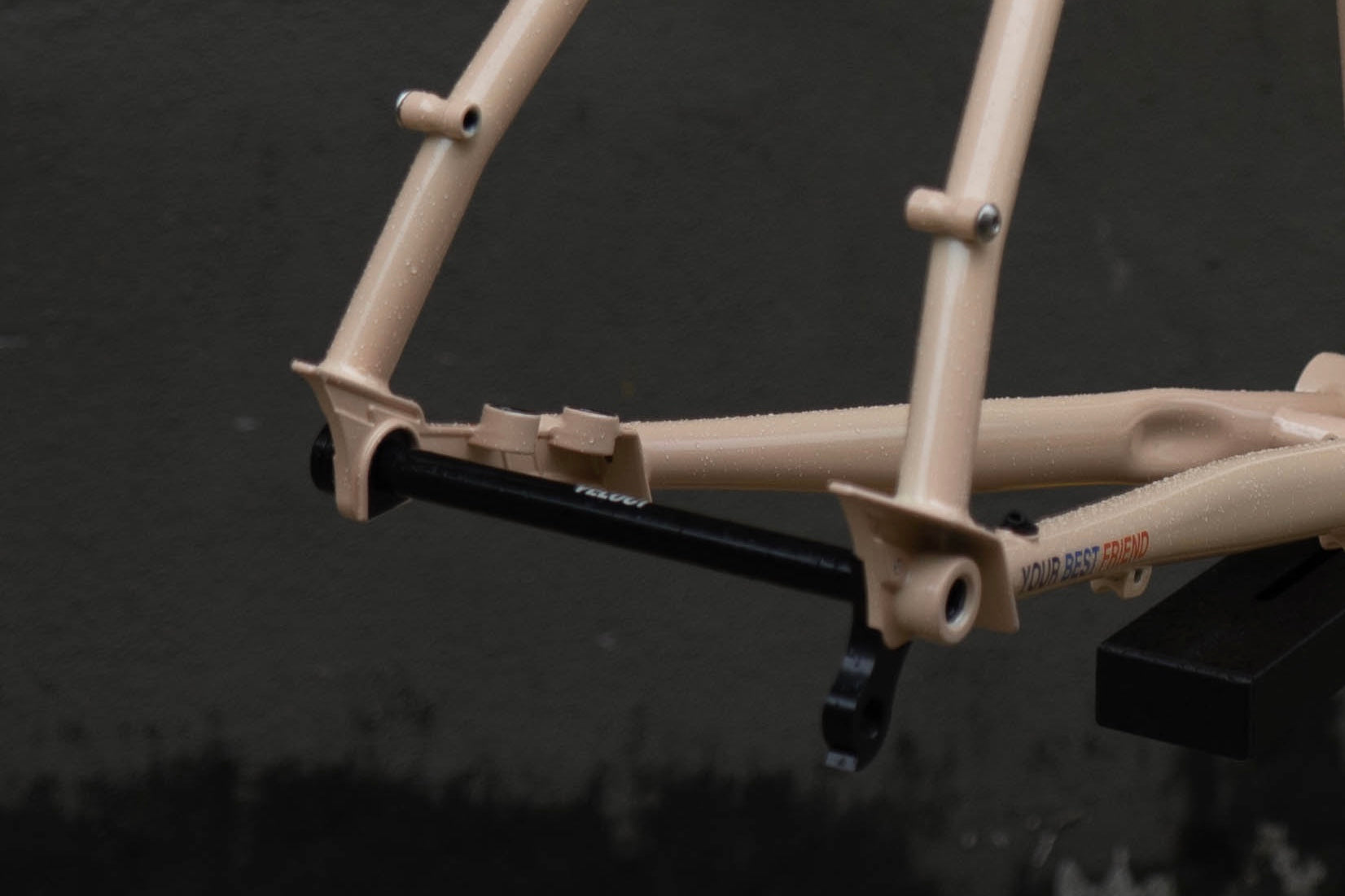

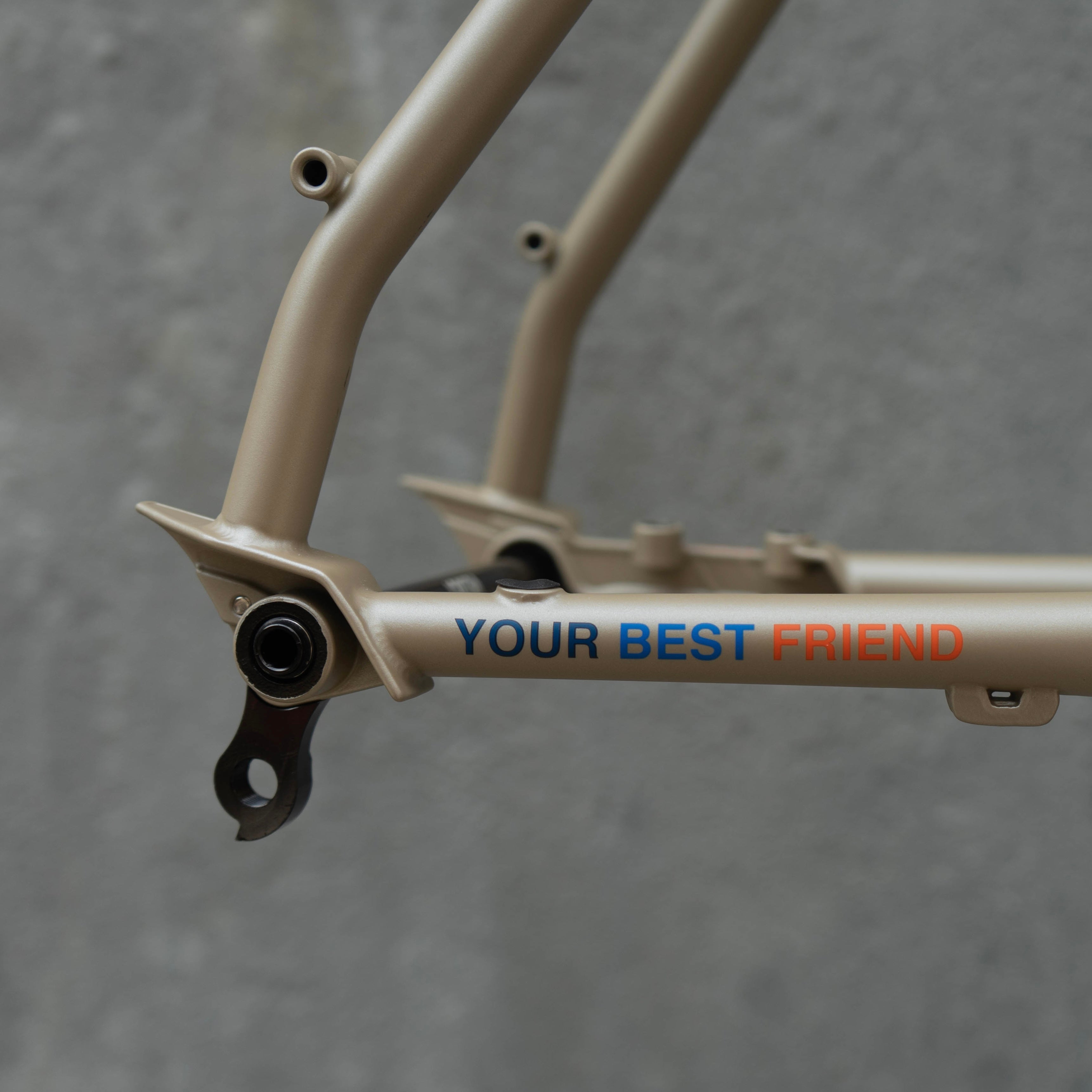

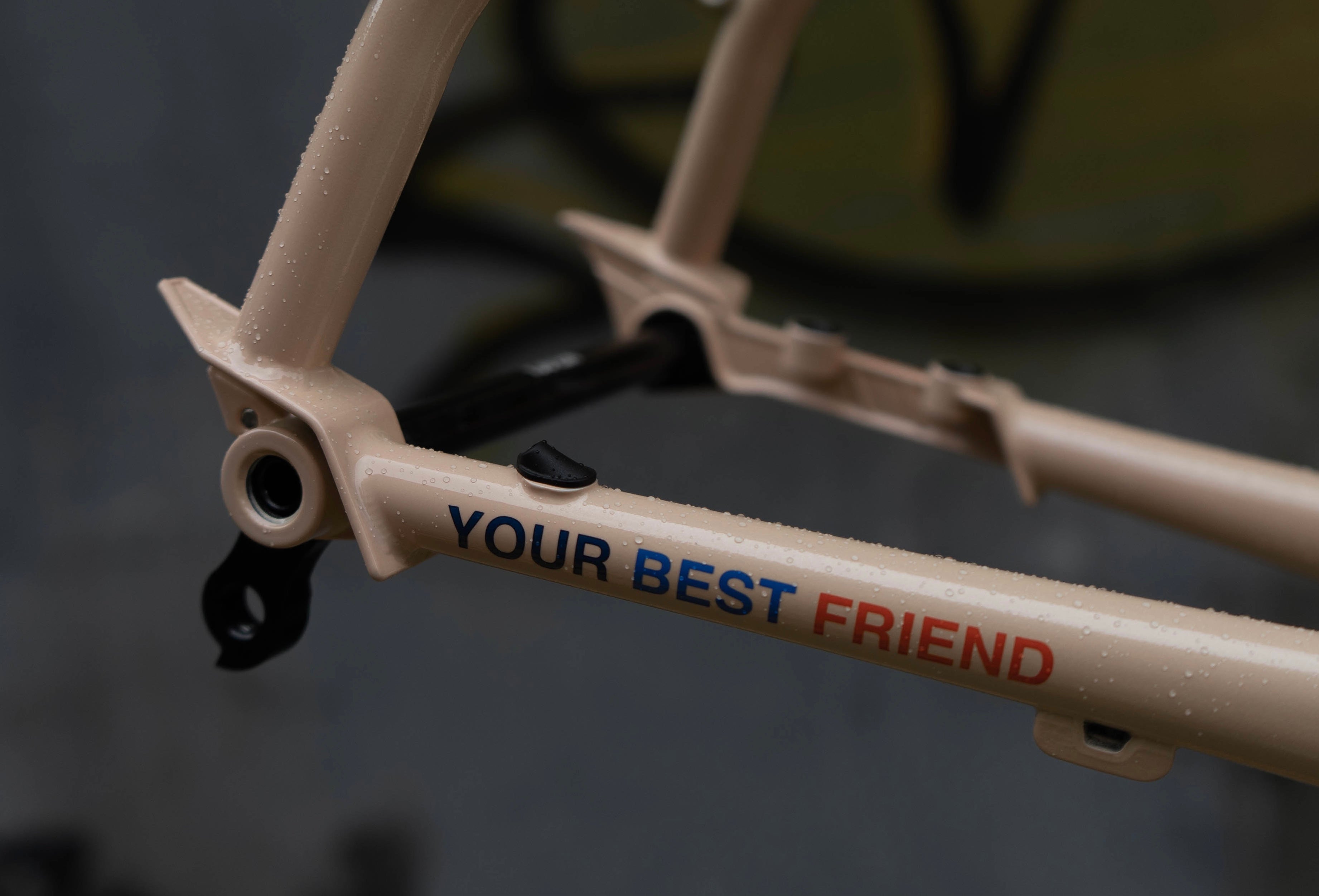

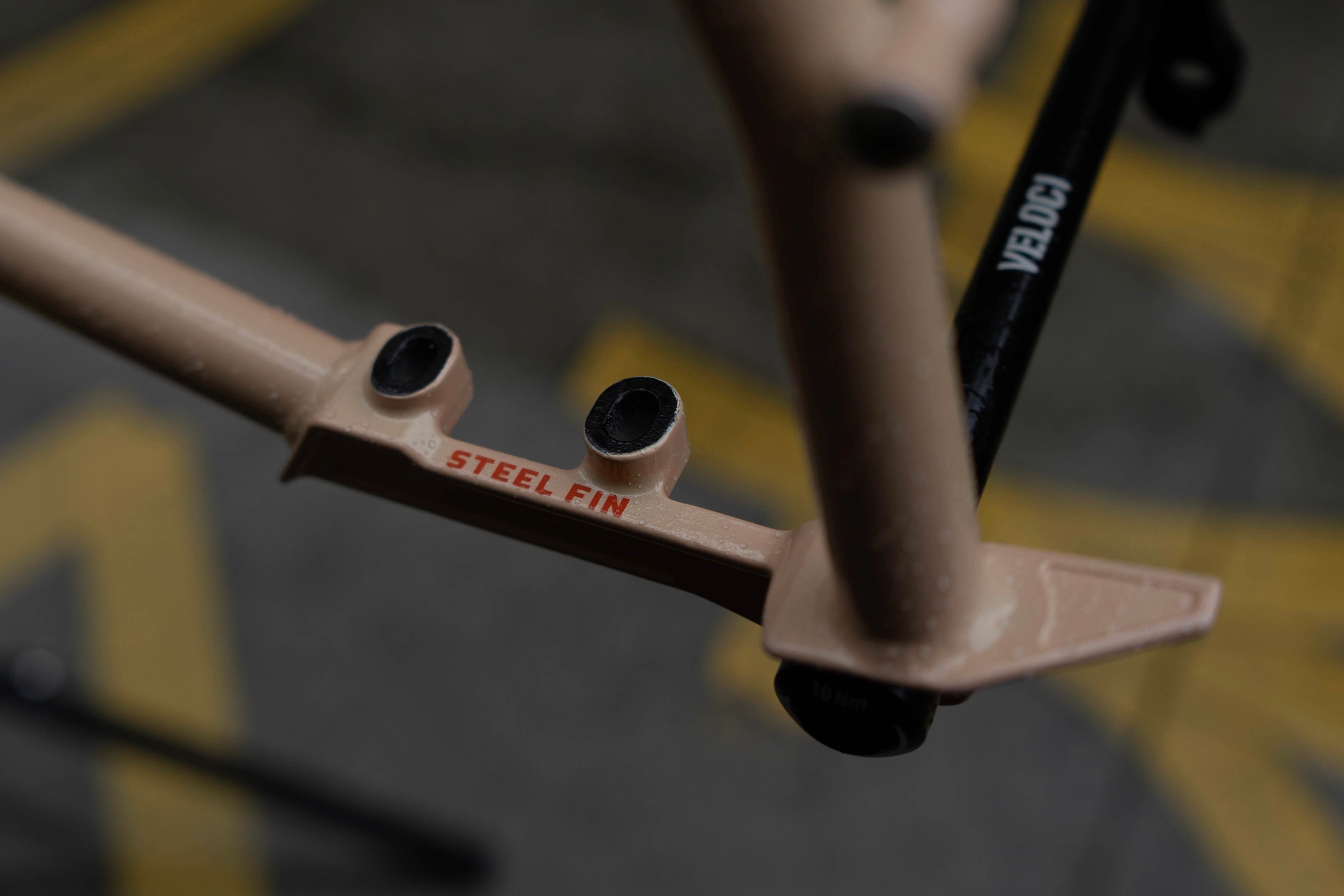

Built for gravel, bikepacking, and endless journeys, Jimmy V.2 carries forward the proven geometry of its predecessor with thoughtful upgrades. Now compatible with SHIMANO Di2, it features our refined steel fin dropout and durable MKPT Chromoly tubing—seamless, heat-treated, and multi-butted for an exceptional balance of weight and strength.

Paired with the versatile No.11 carbon fork, Jimmy V.2 offers multiple cargo and mounting options. It also retains stealth dropper post routing, top tube “fuel” bag mounts, and ED black coating inside and out for added durability.

From gravel roads to long bikepacking trips, Jimmy V.2 is a dependable steel companion built for the long ride.

Frame Specification:

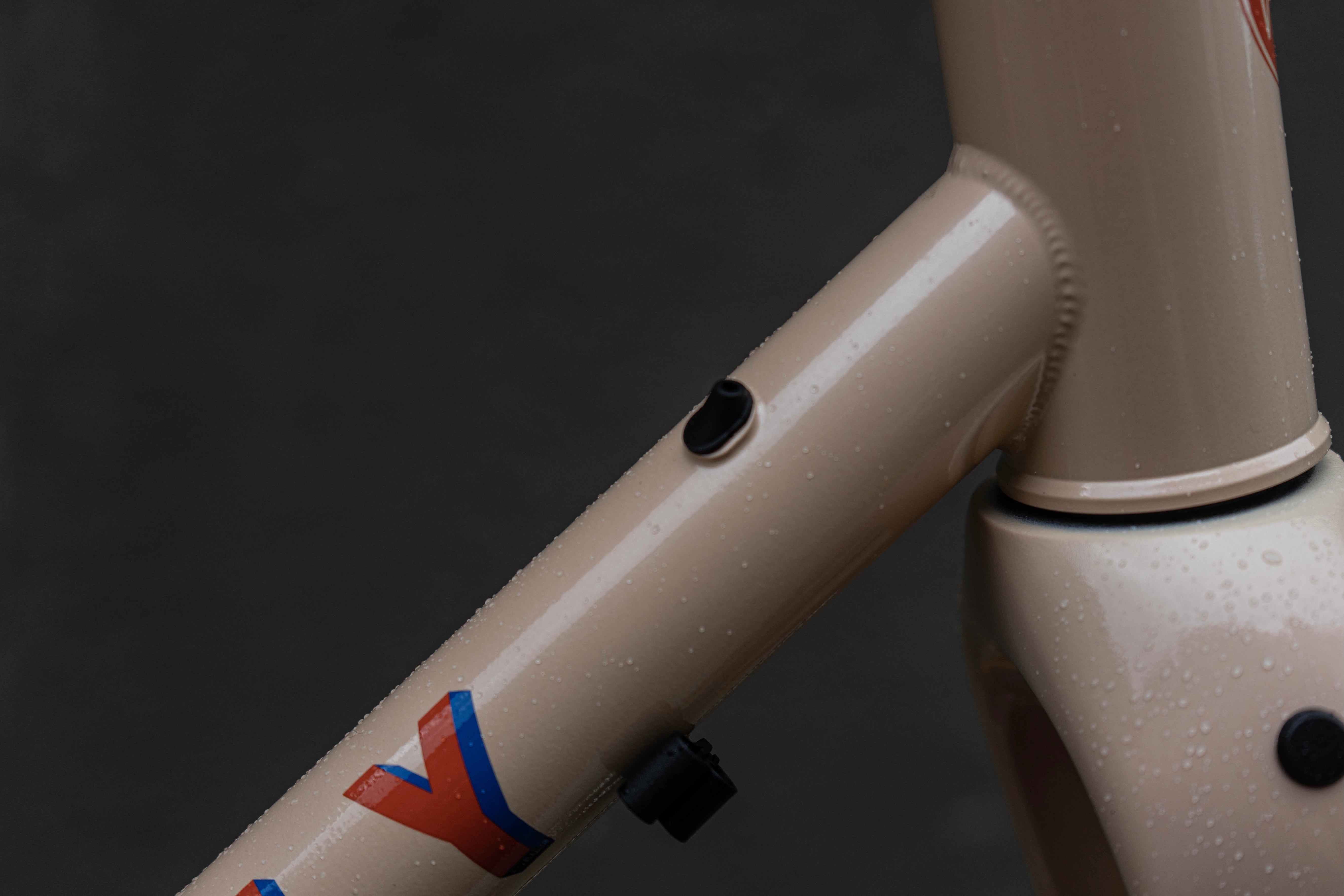

• Straight machined collared 44mm head tube for ZS44/EC44 headset

• 68mm English threaded bottom bracket shell

• Flat mount disc brake (10mm thickness)

• M12x142 spacing

• 29.8mm seat clamp & 27.2mm seatpost

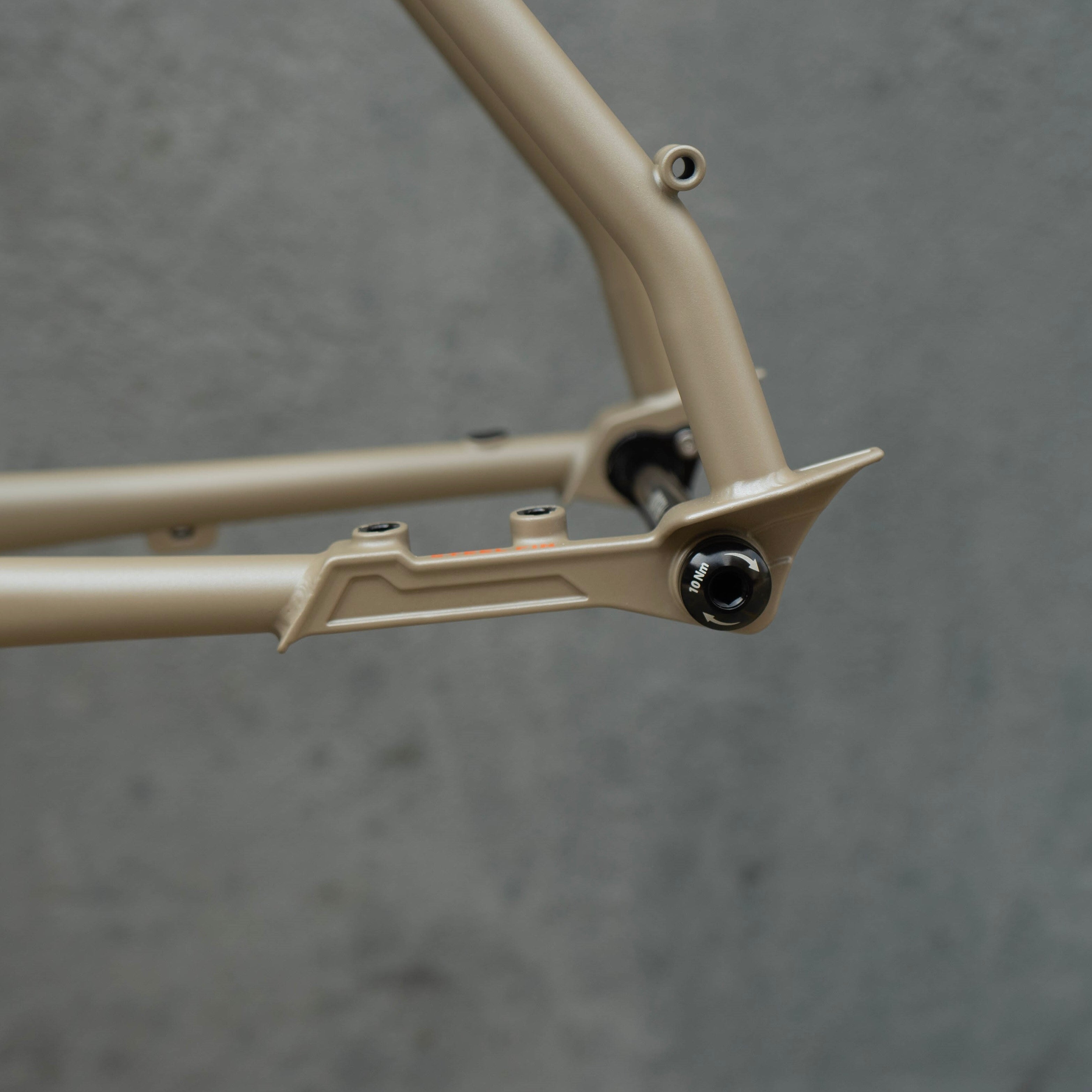

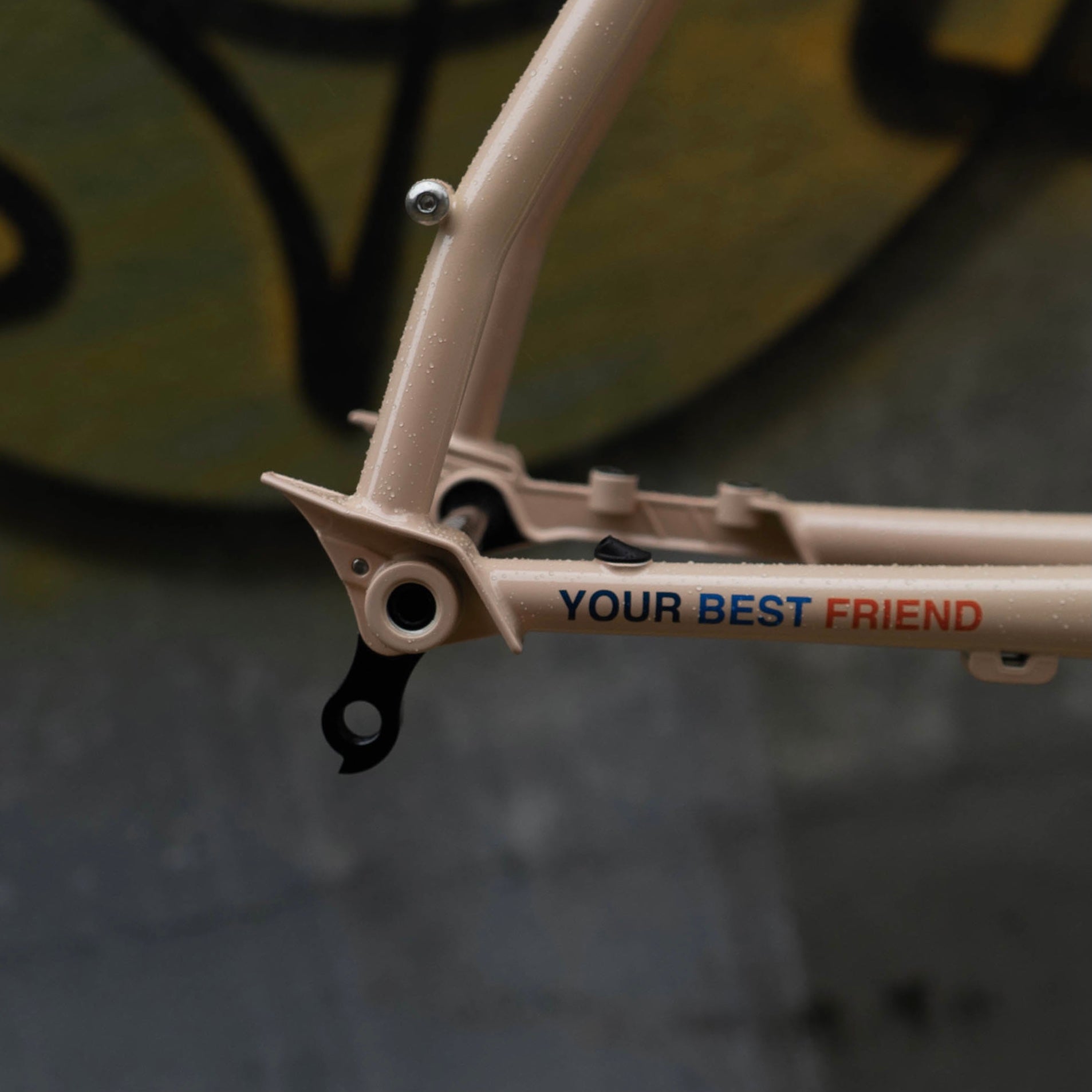

• Replaceable hanger

• Shimano Di2 routing compatible

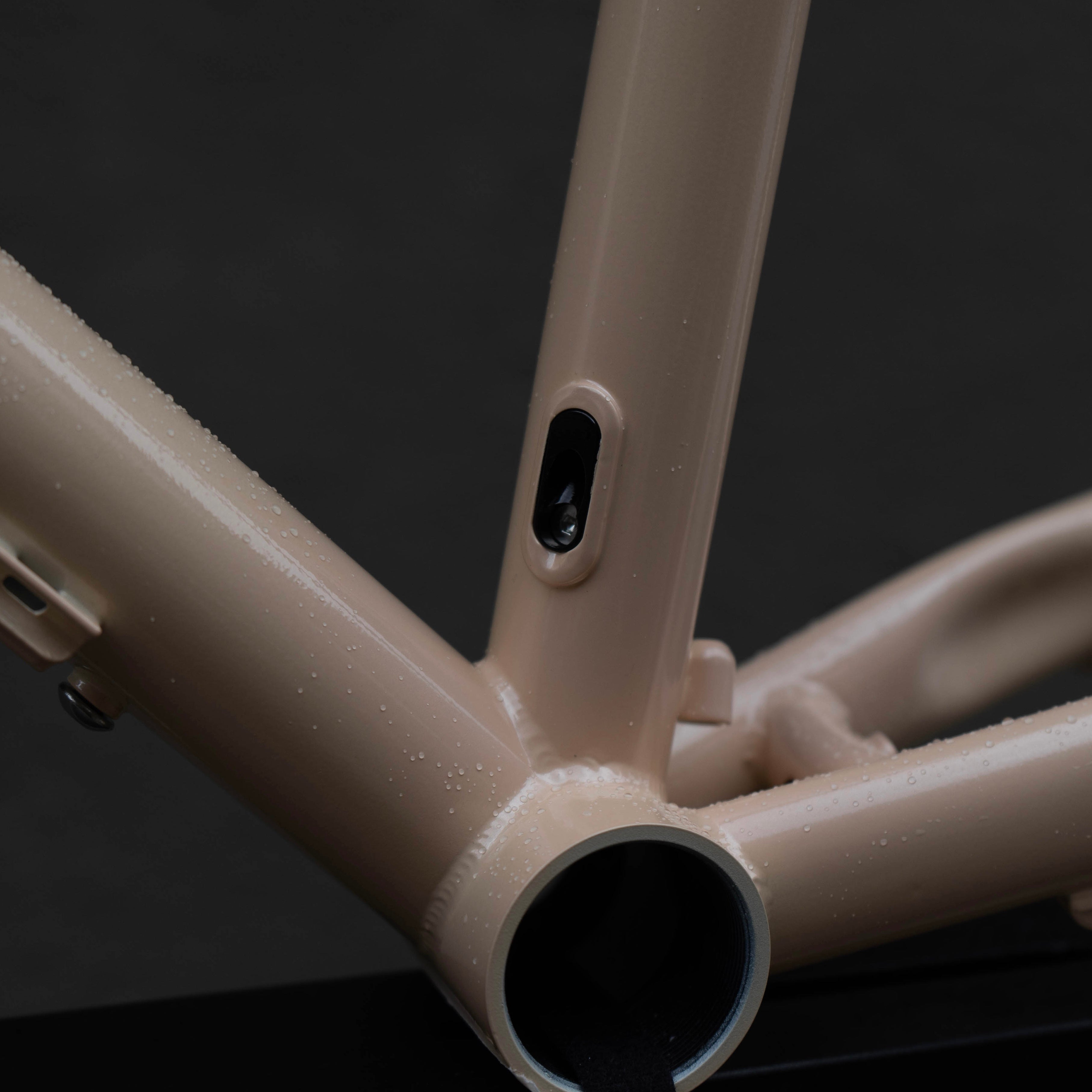

• Dropper post internal routing

• Full cable routing beneath downtube

Tire Clearance:

• 700x50c ( without fenders)

• 27.5x2.1”

Compatibility:

• Compatible with 1X & 2X drivetrains (down-pull, 28.6mm front derailleur clamp)

Mounts:

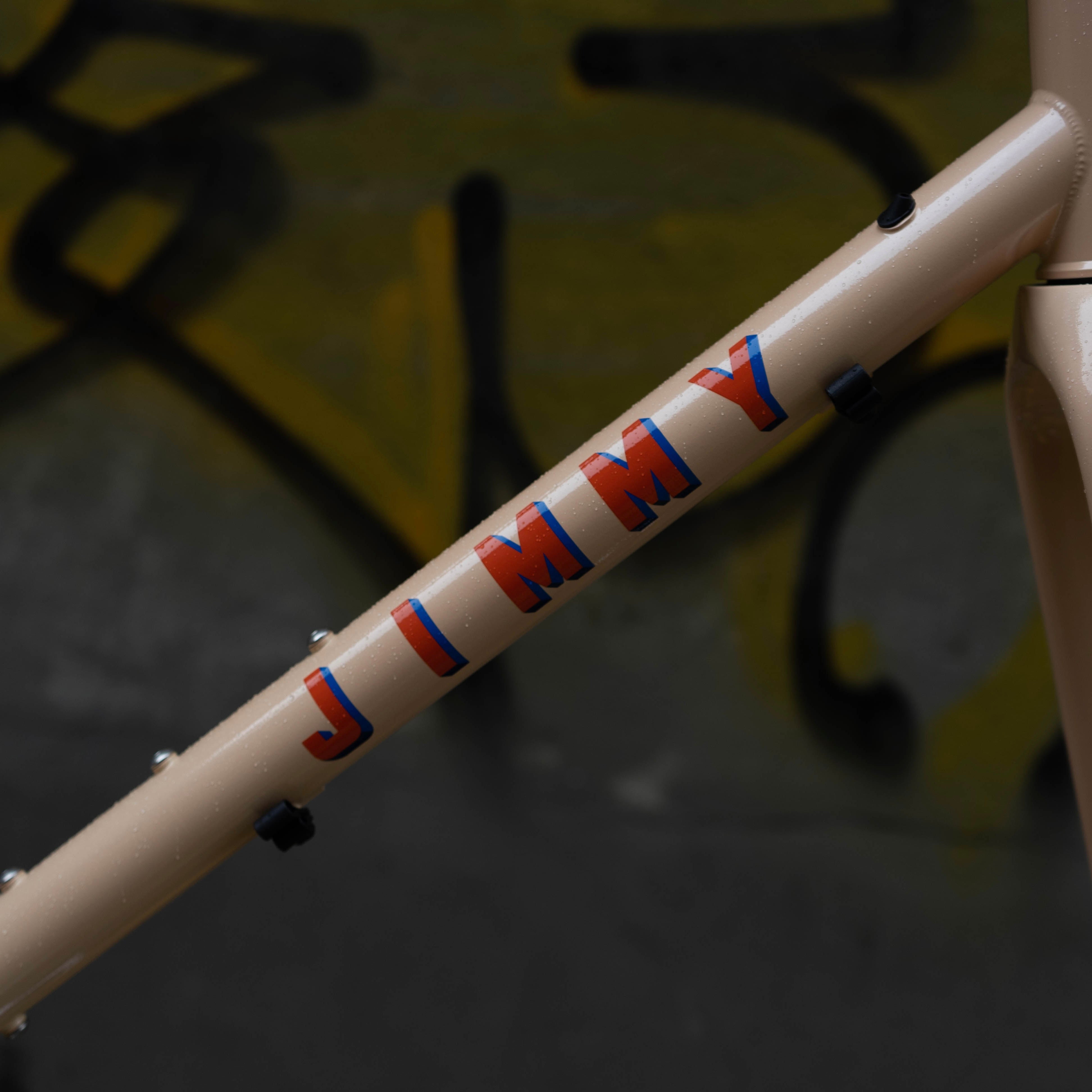

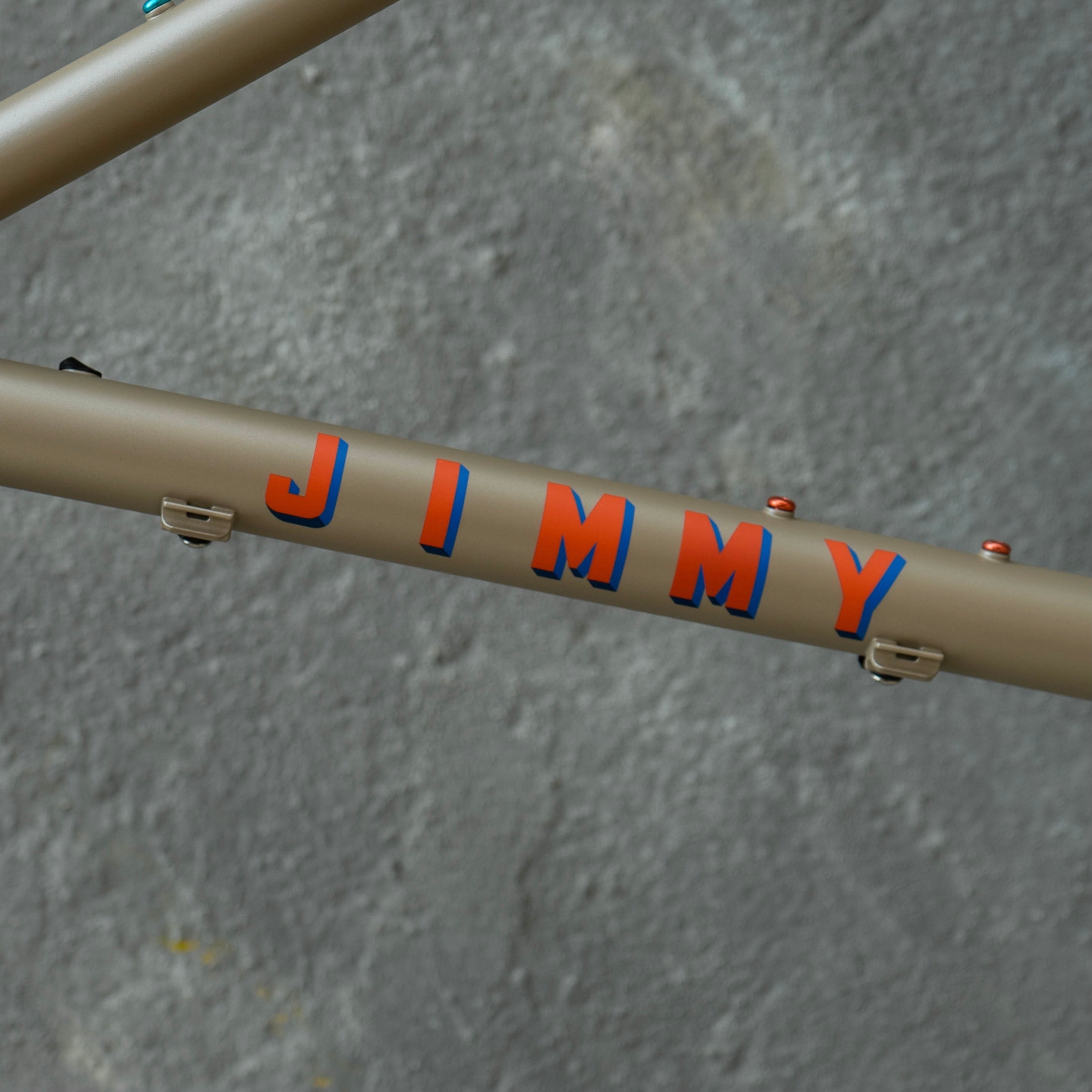

• Three-pack mounts on the top and bottom of the downtube

• Bottle boss on seat tube

• Fender mounts

• Rack mounts

Frame Weight:

• 2220g ( S size)

Fork Specification:

• 1-⅛” to 1-½” threadless steerer with 56mm crown race, 300mm steerer length

• M12x100 spacing

• Flat mount disc brake

• Internal dynamo cable routing

Tire Clearance:

• 700x50c ( without fenders)

• 27.5x2.1”

Mounts:

• Three-pack mounts on both sides of the fork blades

• Fender mounts

Fork Weight:

• 516g (uncut steerer)

Note:

• Different rim and tire combinations may result in different tire clearances.

• Depending on the drivetrain configuration, tire clearance may be limited by the chain rather than the frame.

• Maximum load capacity is 4500g per side on the No.11 carbon fork when all three M5 bolts are properly installed. Please check M5 bolt tightness carefully before each ride. Using straps is recommended.
