PLAN BIG V.3 FRAME SET

$695.00
By VELOCI CYCLE
Size
Color: Washed Denim Blue

Inheriting all the advantages of its previous two generations, the VELOCI PLAN Big V.3 has undergone further optimization in details, making its overall design even closer to perfection. By extending the distance from the bottom bracket center to the top of the head tube, and by increasing the height from the bottom bracket center to the top of the head tube, the VELOCI PLAN Big V.3 offers riders a more upright riding posture. This not only makes long-distance riding more comfortable but also provides more room for the upper body to stretch. Whether you want to install drop bars or flat bars, this setup allows you to equip other components more easily and seamlessly switch your riding style.

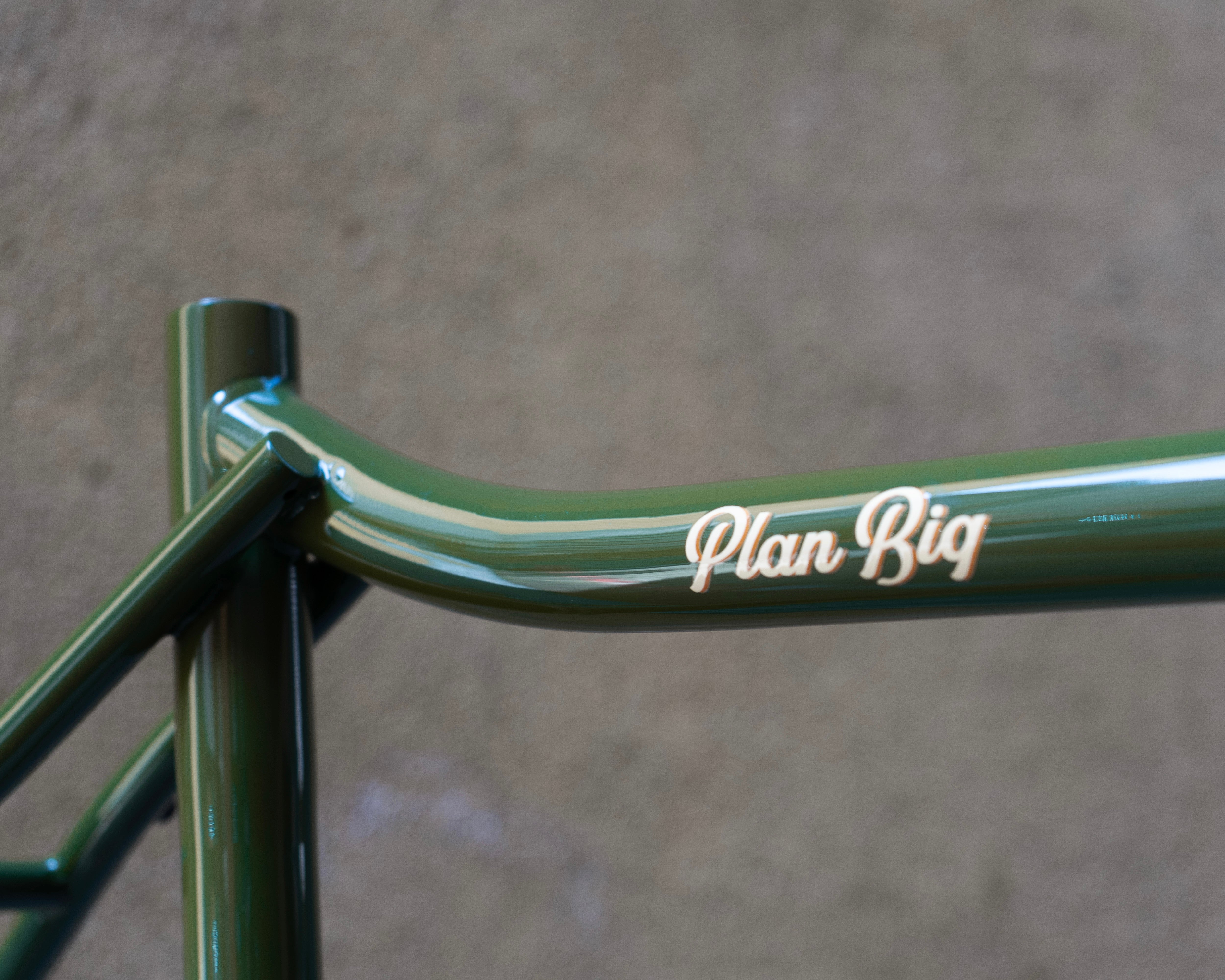

Moreover, the design of the bent rear end of the top tube not only gives the VELOCI PLAN Big V.3 a unique appearance but, more importantly, significantly lowers the frame's standover height, making it easier to get on and off the bike, even when it's loaded with luggage.

The VELOCI PLAN Big V.3 is not just a steel bike or a touring bike; it embodies a riding lifestyle. Whether you're commuting through the city or on a multi-day bike packing trip, it's your most reliable companion.

Frame Specification

  • Straight machined collared 34mm head tube for EC34 headset

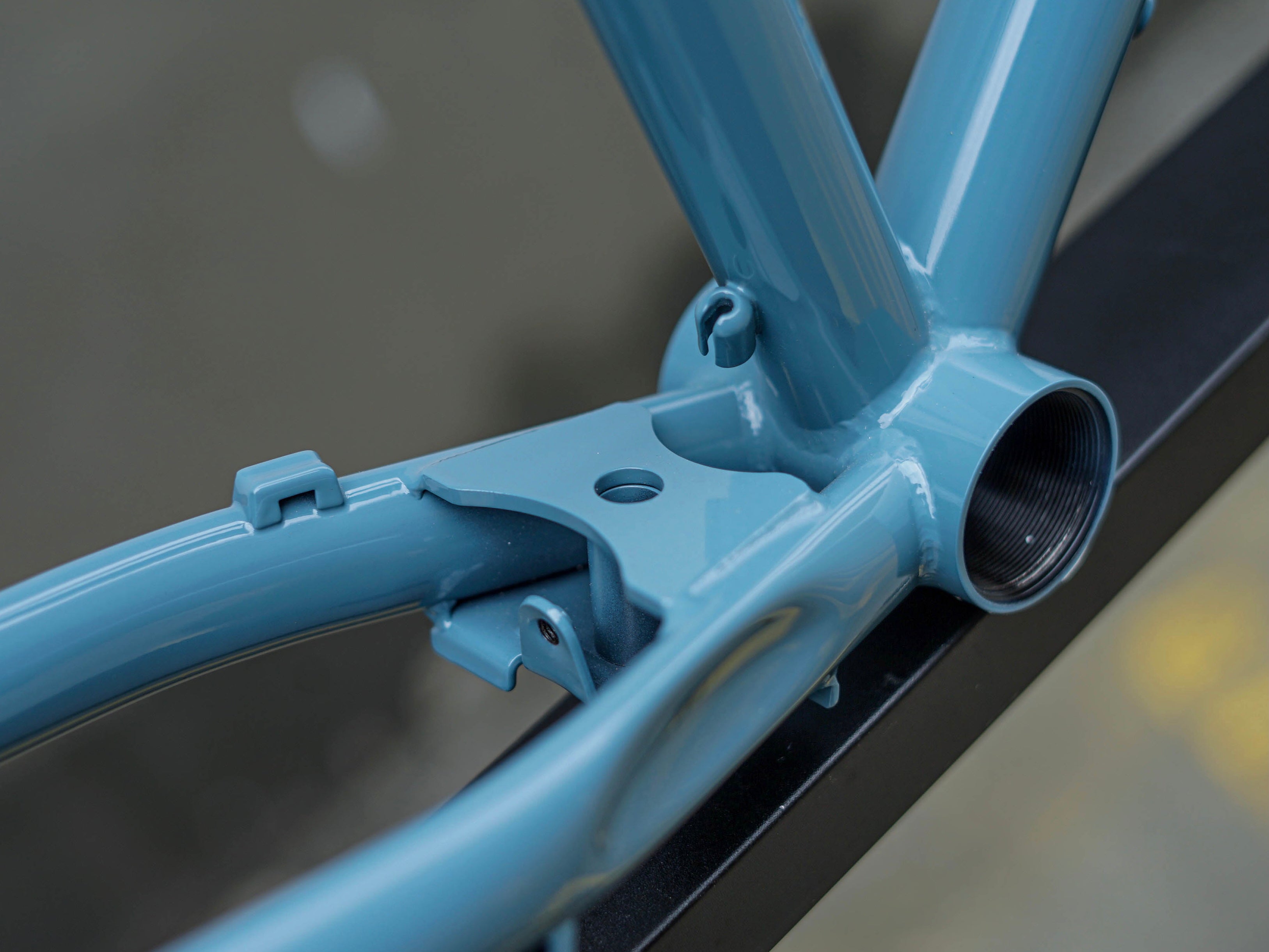

  • 68mm English threaded bottom bracket shell
  • IS mount disc brake
  • Quick release 135mm spacing
  • 29.8mm seat clamp & 27.2mm seatpost
  • Full cable routing beneath downtube

Tire Clearance:

  • 700x50c
  • 27.5x2.1"

Compatibility:

  • Compatible with 1X & 2X drivetrains (down-pull, 28.6mm front derailleur clamp)

Mounts:

  • Three-pack mounts on the top and bottom of the downtube, and seat tube
  • Bottle boss on top tube
  • Fender mounts
  • Rack mounts

Frame Weight:

  • 2380g ( S size)

Fork Specification

  • 1-⅛" threadless steerer with 35mm crown race, 300mm steerer length
  • Quick release 100mm spacing
  • IS mount disc brake

Tire Clearance:

  • 700x45c ( without fenders)
  • 27.5x2.1"

Mounts:

  • Three-pack mounts on both sides of the fork blades
  • Rack mounts
  • Fender mounts

Fork Weight:

  • 1338g (uncut steerer)



Note:

  • Different rim and tire combinations may result in different tire clearances.
  • Depending on the drivetrain configuration, tire clearance may be limited by the chain rather than the frame.

Description

Spec

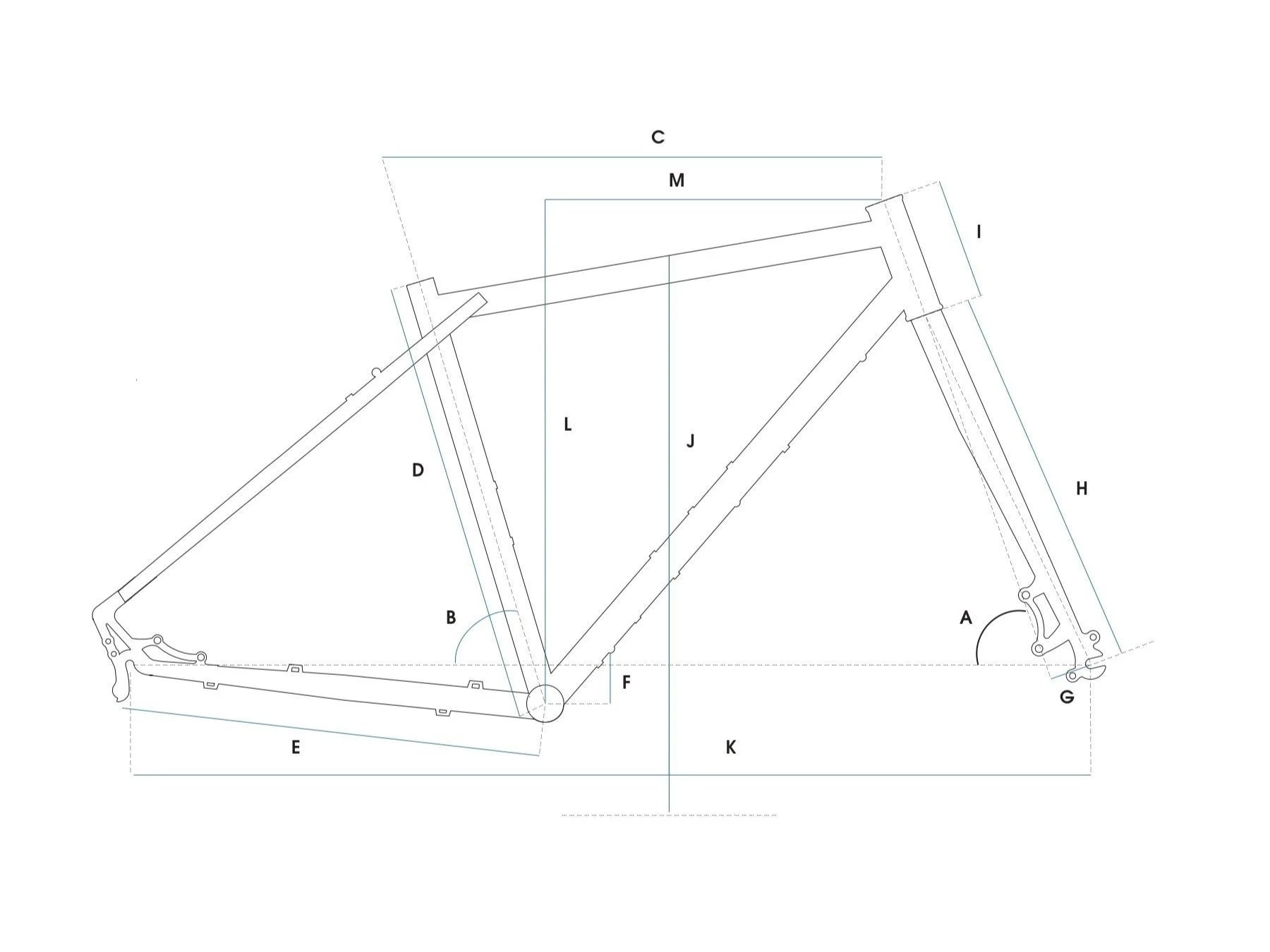

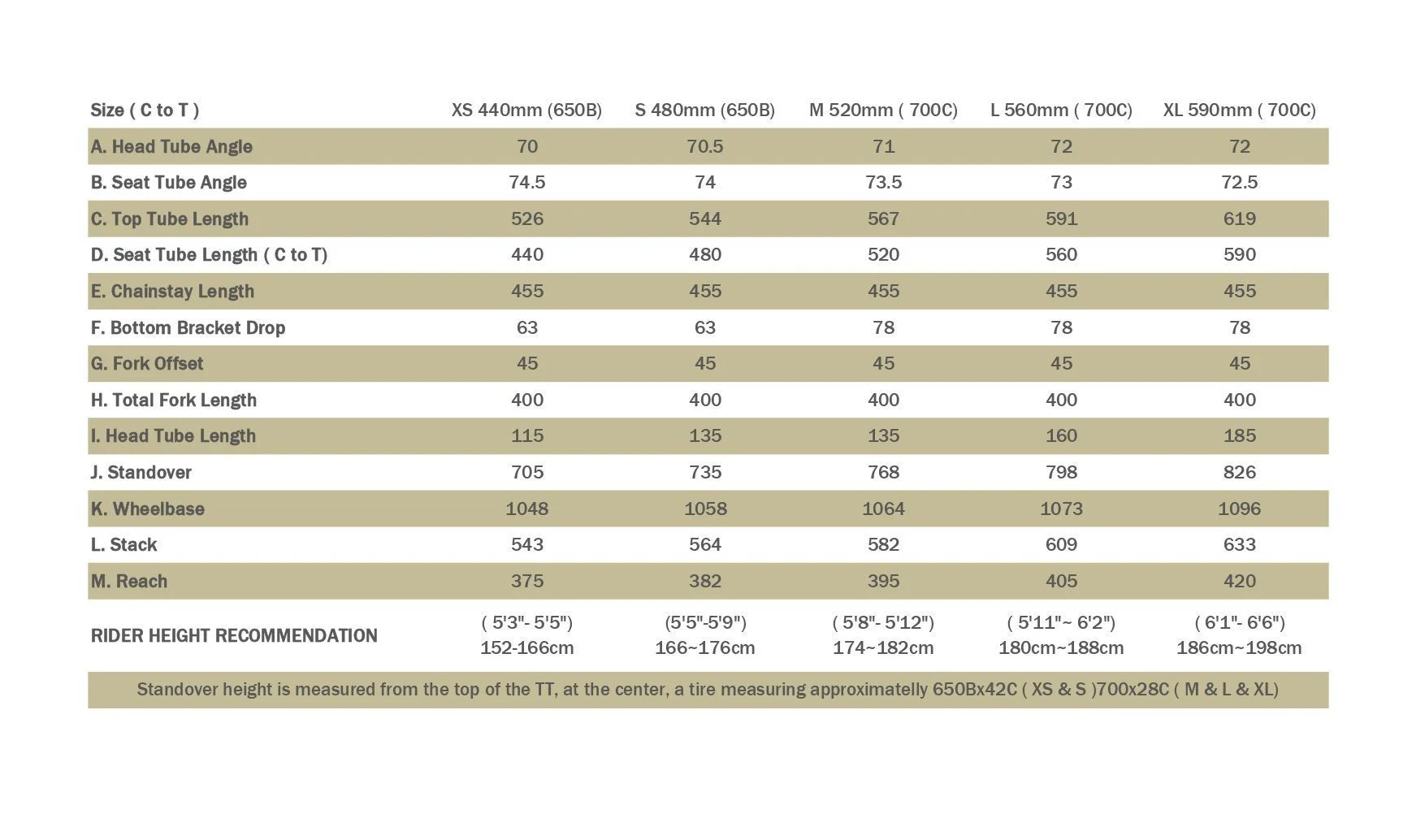

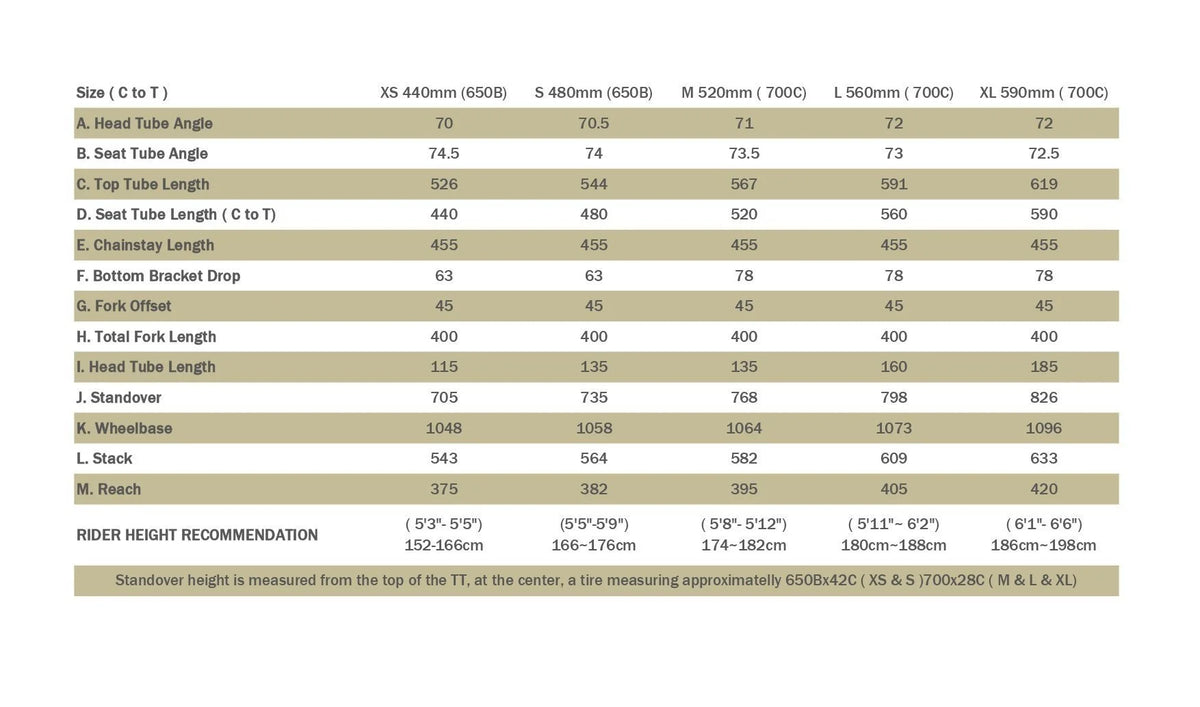

Geometry

Geometry
