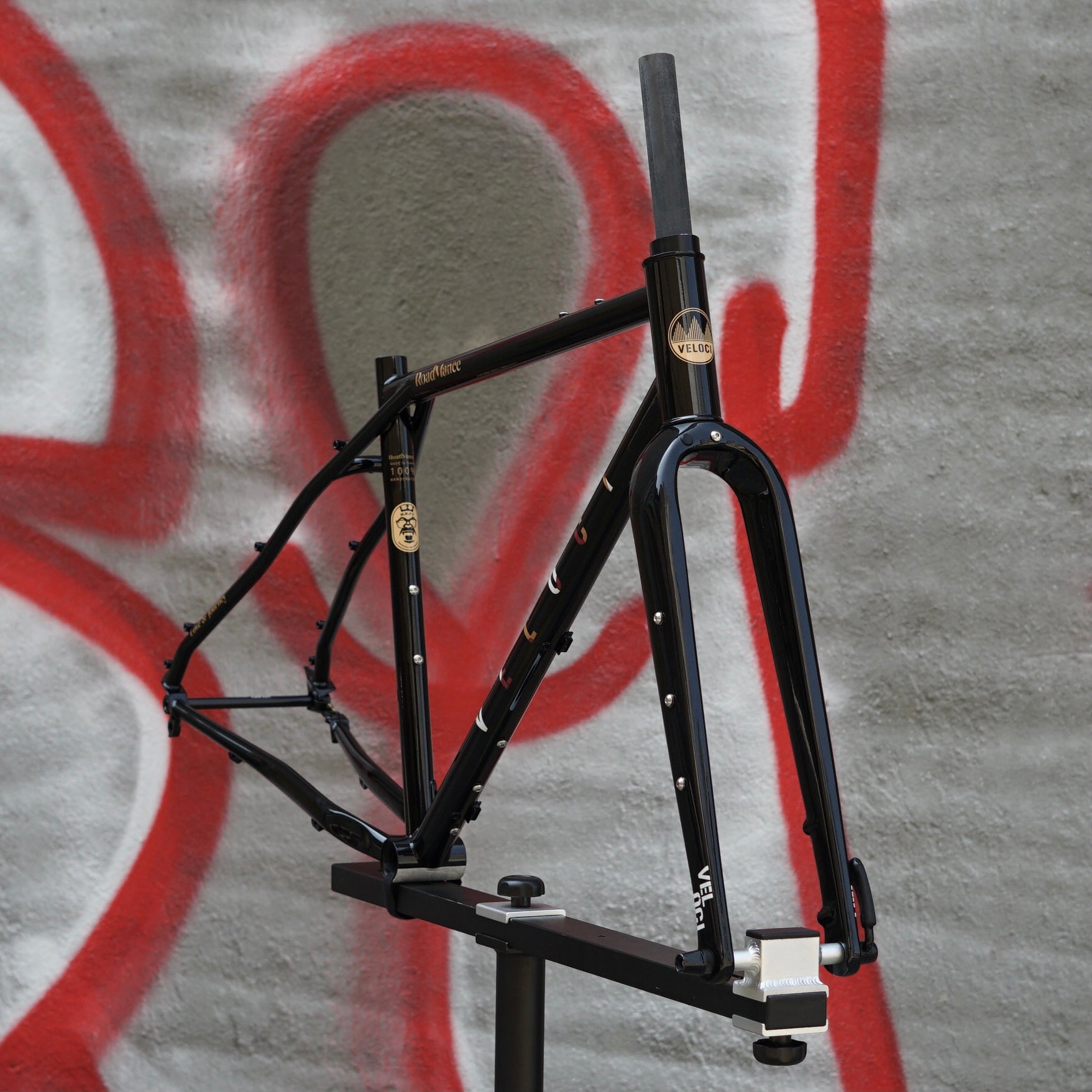

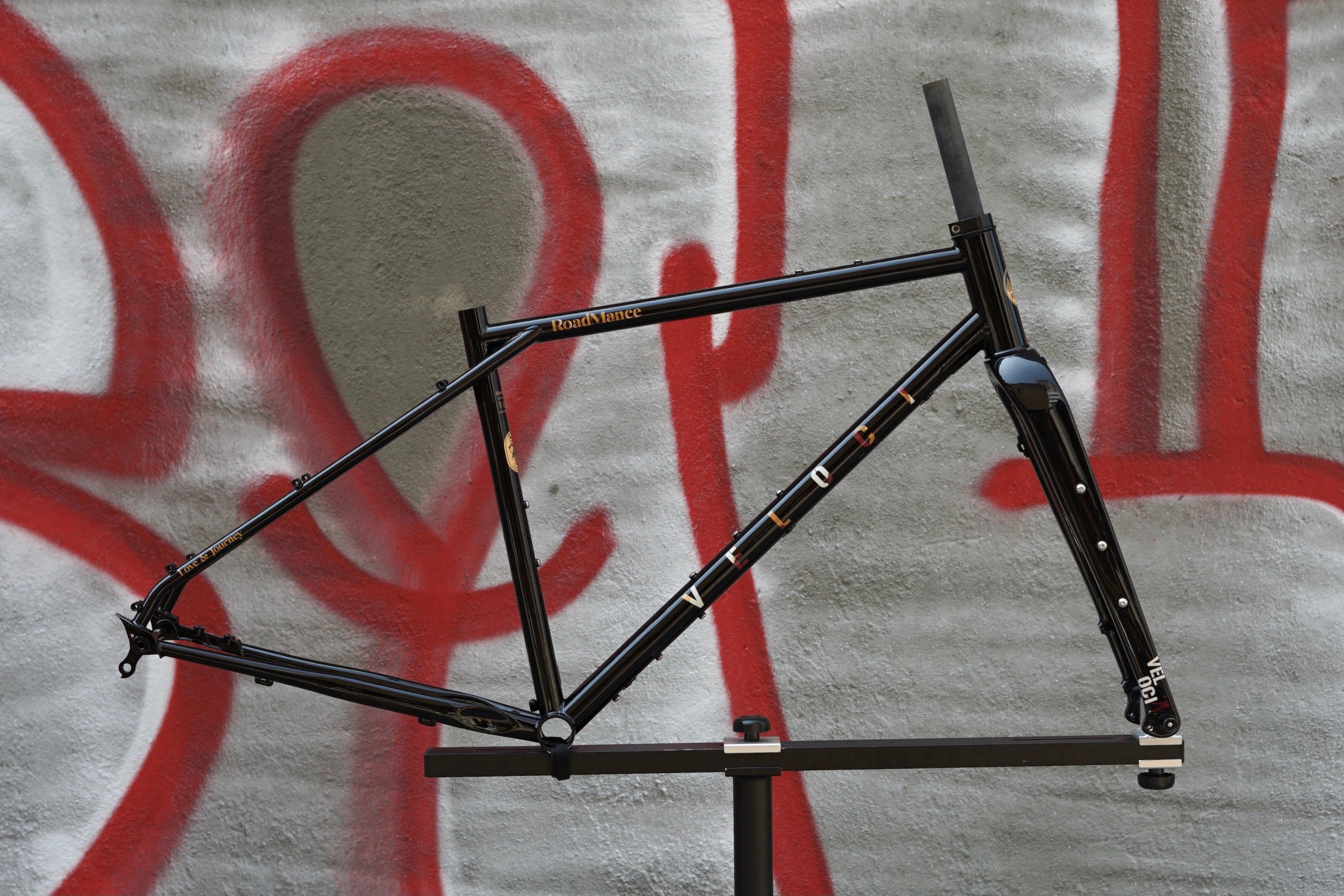

ROADMANCE FRAMESET WITH CARBON FORK

RoadMance is built for riders who enjoy going a little further, whether that means smooth tarmac, rough backroads, gravel paths, or multi-day bikepacking trips. Designed with stable handling and long-distance comfort in mind, it feels confident on uneven terrain while still remaining efficient and easy to ride on the road.

With generous tire clearance for up to 29x2.3" or 27.5x2.4" tires, RoadMance adapts easily to different riding styles and terrain choices. The seamless heat-treated multi-butted MKPT chromoly tubing keeps a balanced ride feel with the durability steel is known for.

Paired with the No.88 carbon fork featuring mounts for cages, racks, and fenders, the bike is ready for commuting, touring, or off-road exploration without needing much extra thought.

Details like stealth dropper routing, top tube bag mounts, and ED black coating inside and out help keep the bike practical, clean-looking, and durable for long-term use.

The longer reach and moderate stack height give RoadMance a natural riding position with either drop bars or flat bars, depending on how you want to build it.

Simple, capable, and adaptable, RoadMance is made for riders who enjoy the freedom of taking the longer route home.

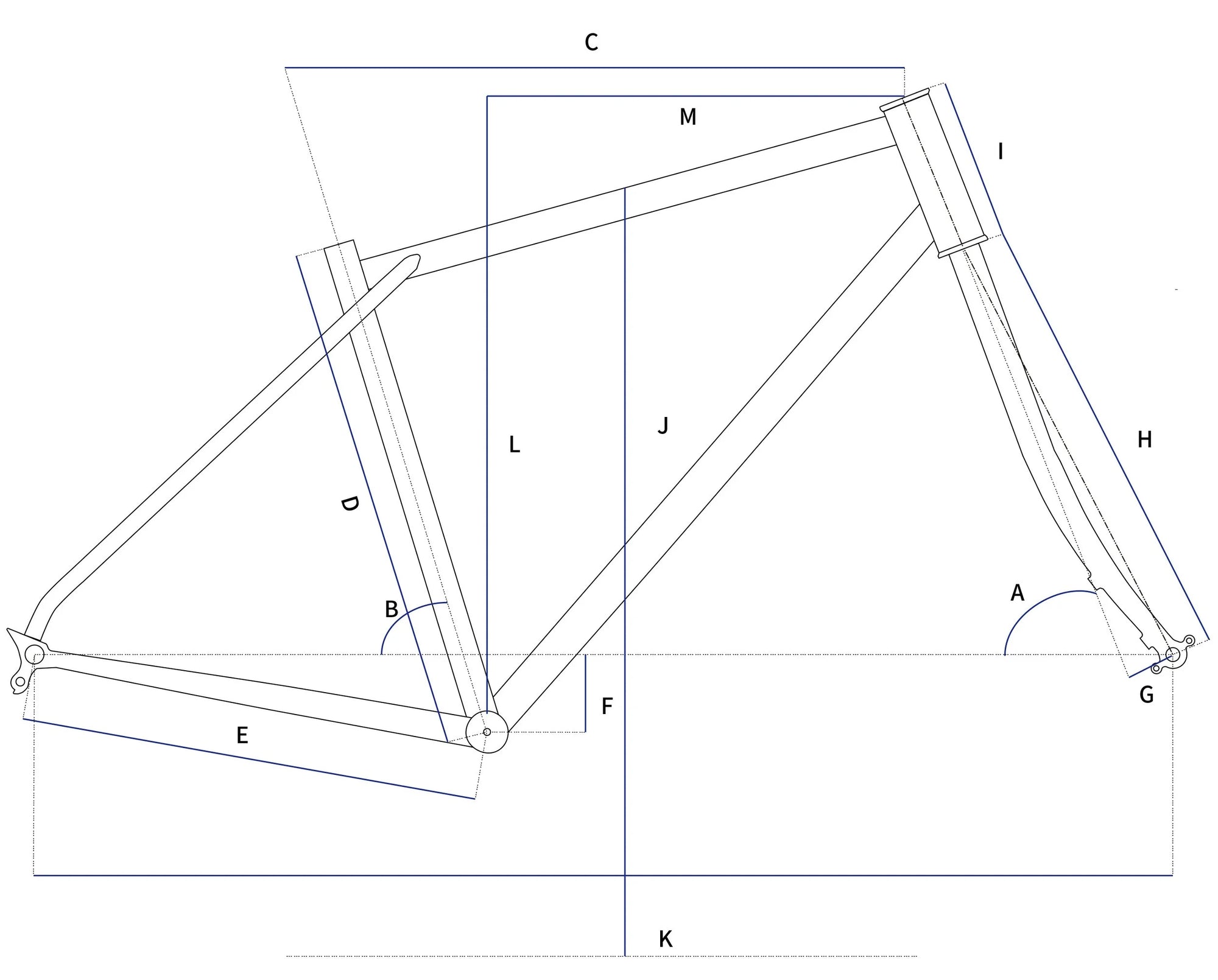

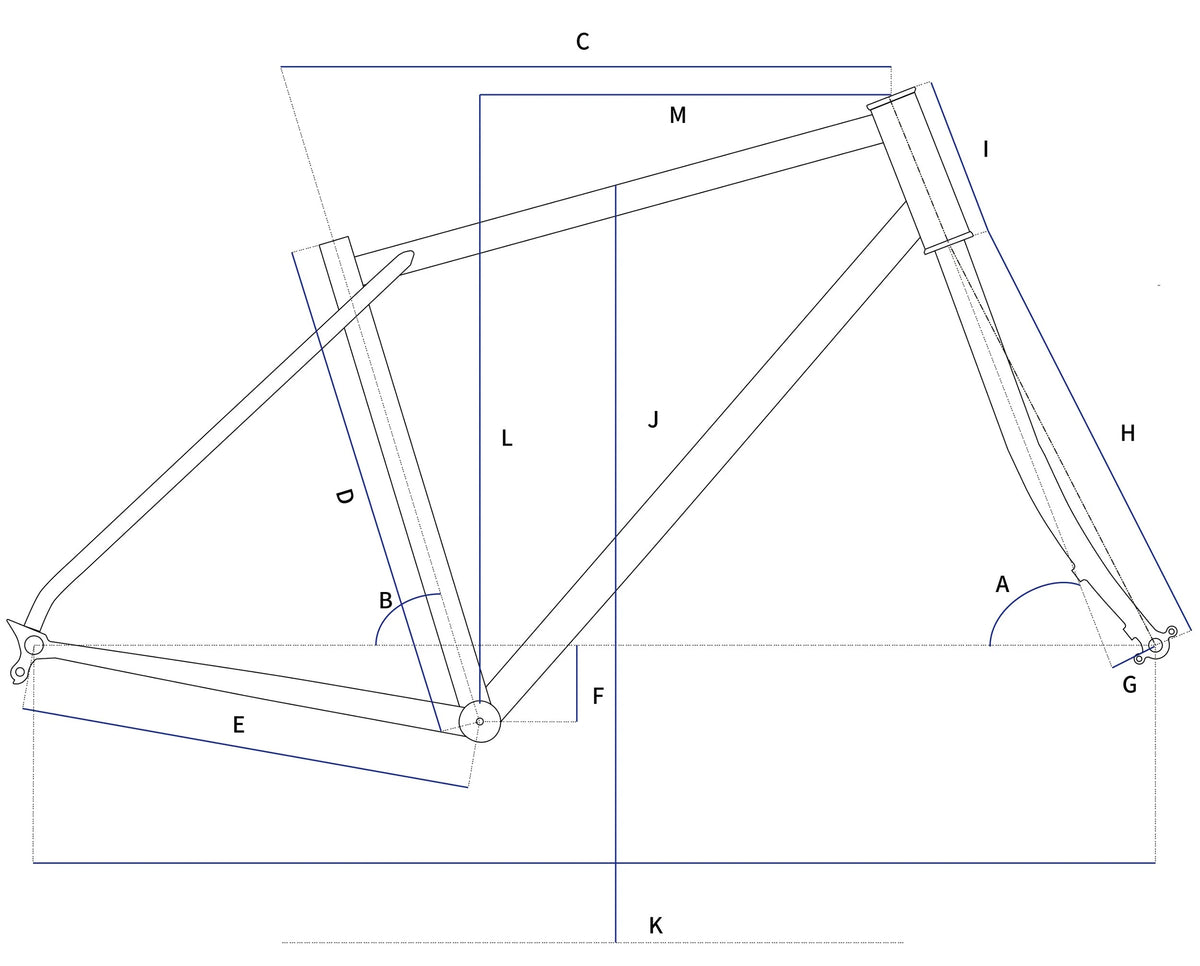

Frame Specification

• Straight machined collared 44mm head tube for ZS44/EC44 headset
• 68mm English threaded bottom bracket shell
• Flat mount disc brake (10mm thickness)
• M12x142 spacing
• 29.8mm seat clamp & 27.2mm seatpost
• Replaceable hanger
• Dropper post internal routing
• Full cable routing beneath downtube


Tire Clearance:

• 29x2.25" ( without fenders)
• 27.5x2.4"

Compatibility:

• Compatible with 1X & 2X drivetrains (down-pull, 28.6mm front derailleur clamp)

Mounts:

• Three-pack mounts on the top and bottom of the downtube
• Bottle boss on seat tube and top of toptube
• Fender mounts
• Rack mounts

Frame Weight:

• 2350g ( S size)

Fork Specification

• 1-⅛" to 1-½" threadless steerer with 56mm crown race, 300mm steerer length
• M12x100 spacing
• Flat mount disc brake
• Internal dynamo cable routing

Tire Clearance:

• 29x2.25" ( without fenders)
• 27.5x2.4"

Mounts:

• Three-pack mounts on both sides of the fork blades
• Threaded thru-axle rack mounts
• Fender mounts

Fork Weight:

• 508g (uncut steerer)

Note:

• Different rim and tire combinations may result in different tire clearances.
• Depending on the drivetrain configuration, tire clearance may be limited by the chain rather than the frame.
• Maximum load capacity is 4500g per side on the No.88 carbon fork when all three M5 bolts are properly installed. Please check M5 bolt tightness carefully before each ride. Using straps is recommended.
